A2 VARIABLE CROSSOVER

138 US $ per pair

Contact us to get a quote with shipping at contact@liiaudiohifi.com

Adjustable Crossover (300 Hz, 2nd Order Design)

Precision Integration for Woofer and Full-Range Harmony

The Lii Audio Open-Baffle Crossover is specially engineered for systems combining open-baffle woofers and full-range drivers, achieving a seamless transition between deep bass and pure midrange clarity.

Designed with a second-order (12 dB/oct) filter, the woofer section crosses over at approximately 300 Hz, ensuring natural low-frequency roll-off and excellent phase coherence.
The full-range path also employs a second-order network, featuring a stepless capacitor and precision attenuator that allow fine adjustment of the full-range driver’s output. This makes it easy to match the tonal balance and sound pressure with a wide variety of full-range speakers.

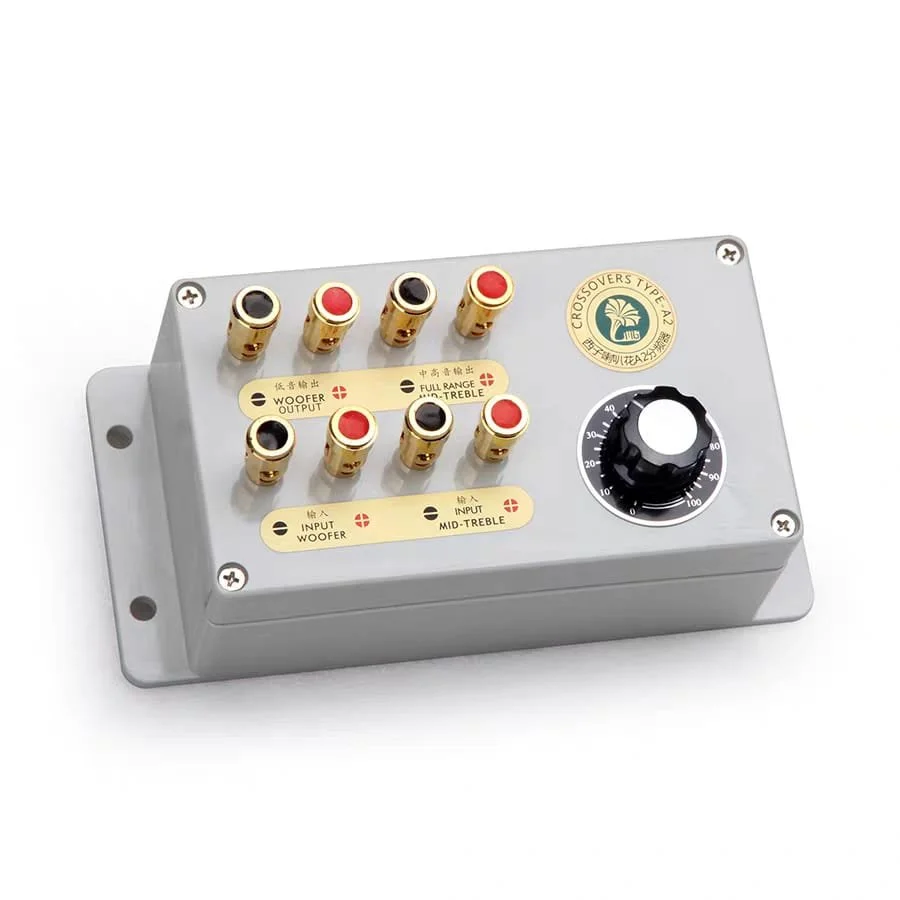

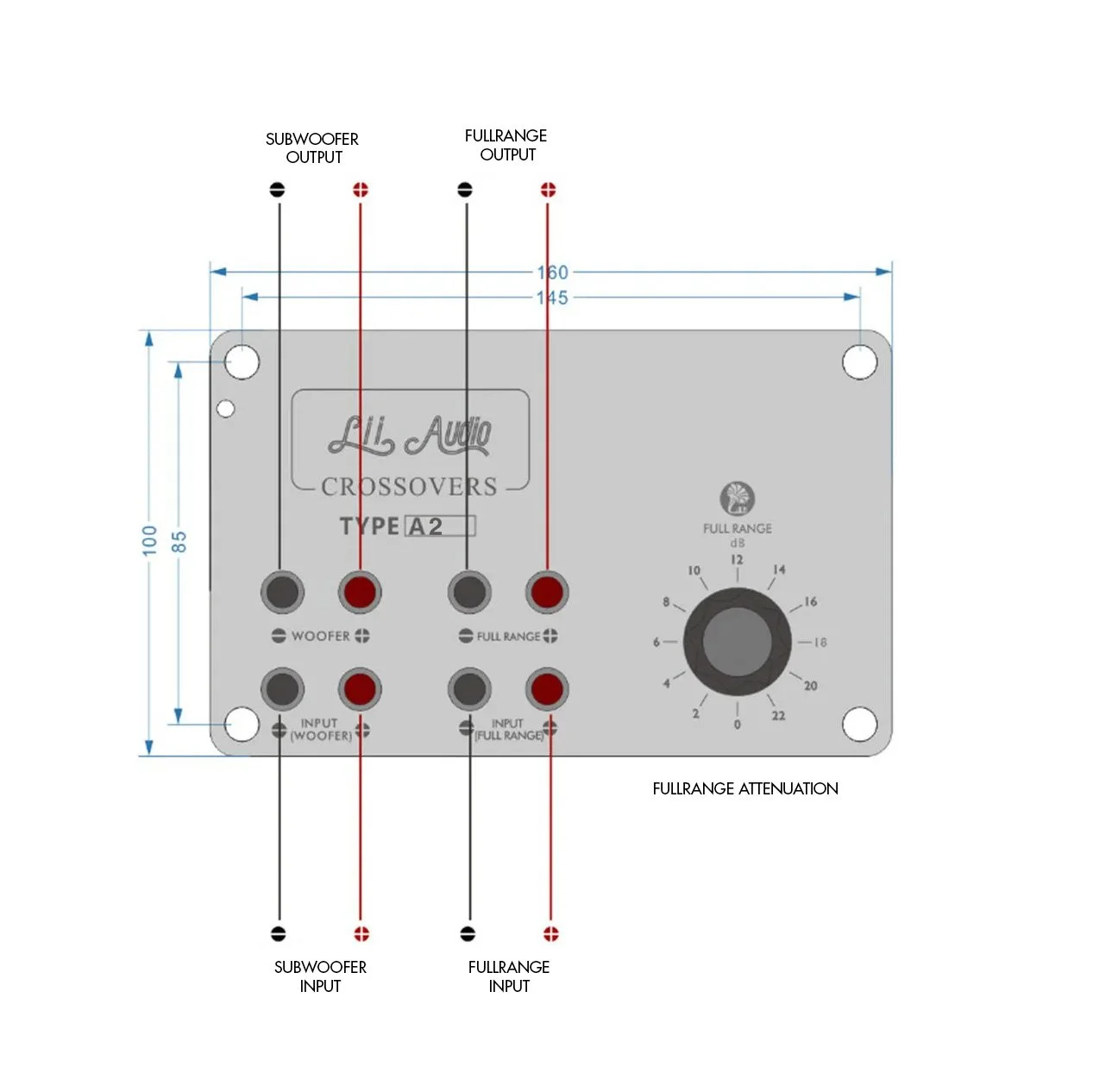

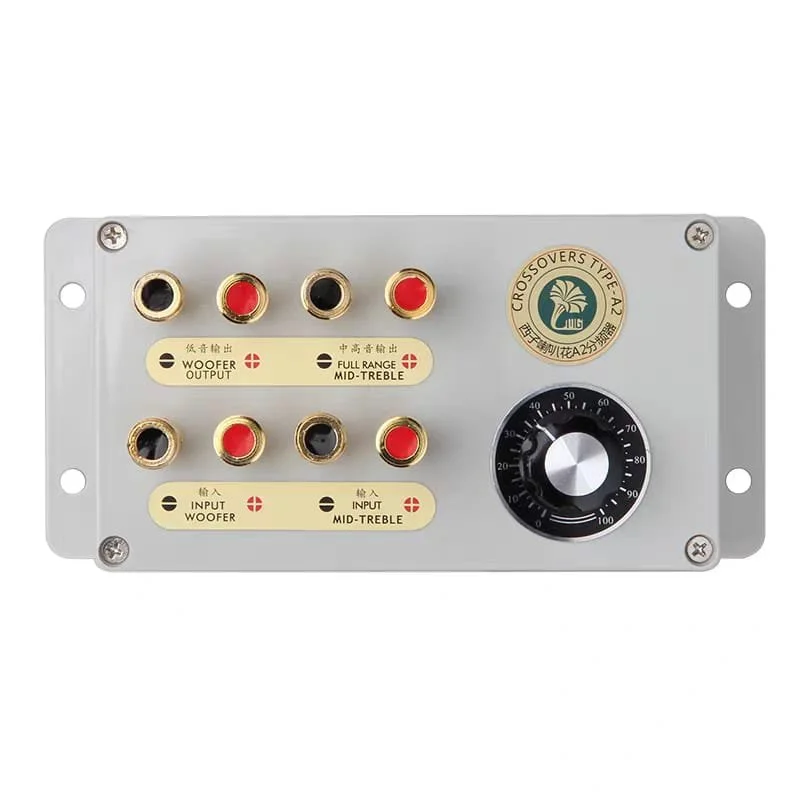

Each crossover is single-channel with two input terminals and two output terminals, offering maximum flexibility for custom configurations and experimental setups.

Whether used in high-end open-baffle designs or bespoke full-range systems, this crossover ensures balanced integration, effortless musical flow, and enhanced system synergy.

Sold as a matched pair.
