C10 Speaker
3000 US $ per pair
Contact us to get a quote with shipping at contact@liiaudio.com
A Masterpiece of Form and Fidelity

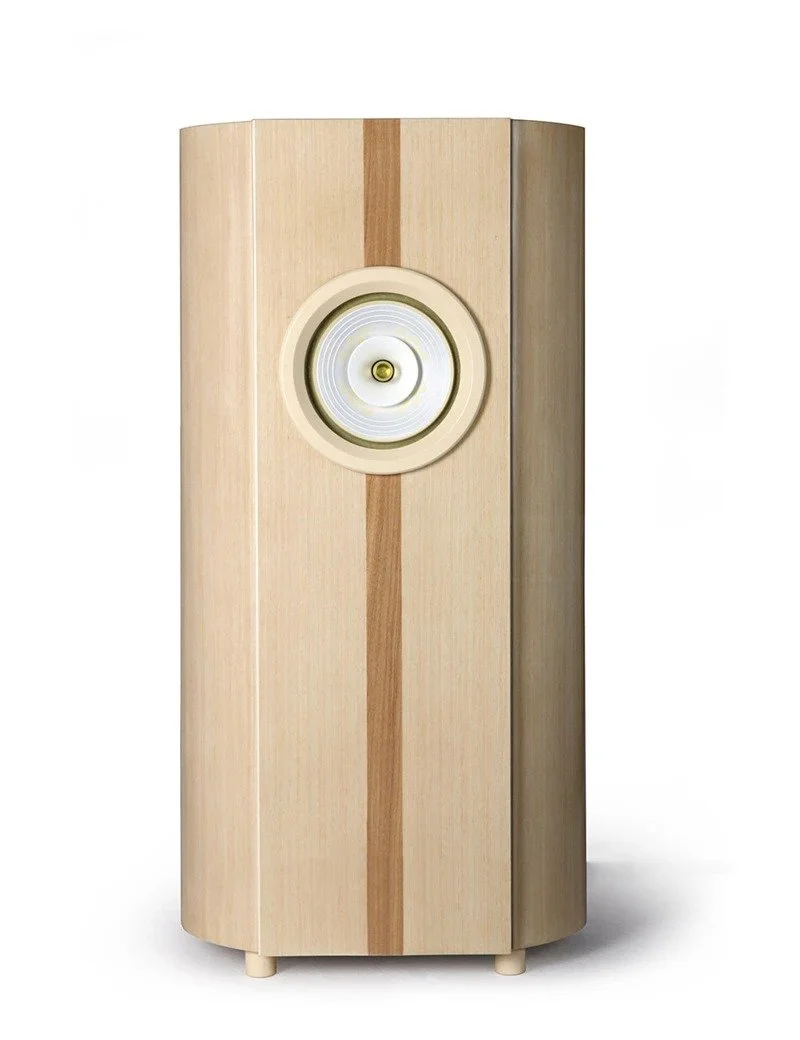

The Crystal-10 is a premium full-range loudspeaker built around the acclaimed 10-inch Crystal-series driver from the Xizi Horn Flower lineup. Housed in a sculptural, curved cabinet crafted with precision multi-layer bending, this speaker is designed to deliver sound that is as pure and transparent as crystal—true to its name.
The distinctive arc-shaped enclosure is engineered to eliminate internal standing waves and reduce cabinet resonance, allowing the music to emerge with clarity, depth, and remarkable presence. With no need for internal damping materials, the design delivers a sound that’s clean, open, and effortlessly natural—combining the spatial magic of open-baffle systems with the bass extension of a large, tuned enclosure.
Key Specifications:
Impedance: 8 Ohms
Power Handling: 50–80 W
Frequency Response: 32 Hz – 20 kHz
Sensitivity: 100 dB (2.83V / 1m)

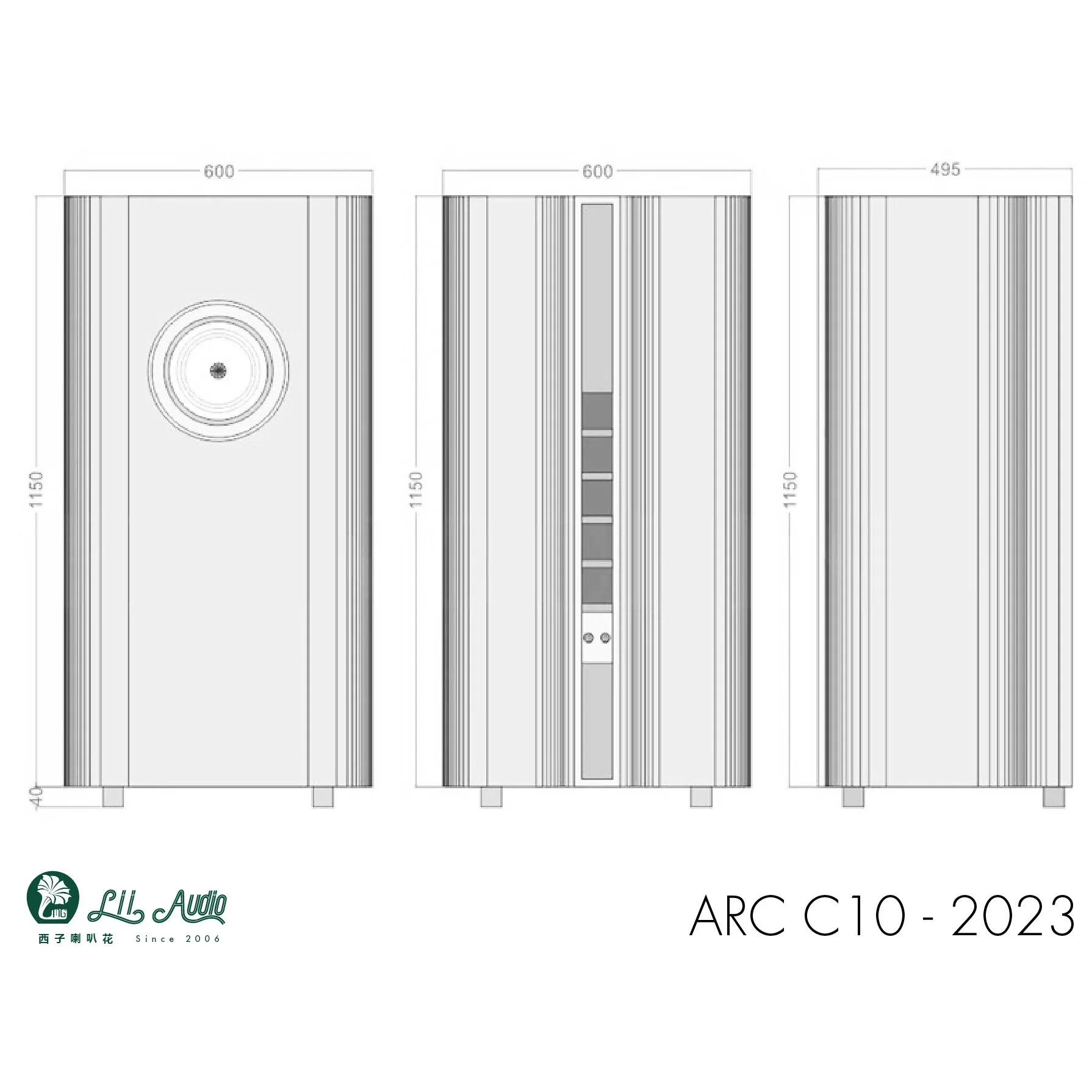

Dimensions: 1190 mm (H) × 600 mm (W) × 495 mm (D)
Shipping Dimensions: 1280 mm × 680 mm × 580 mm
Weight: 88 kg / pair
Design & Acoustic Performance:
Acoustic Architecture

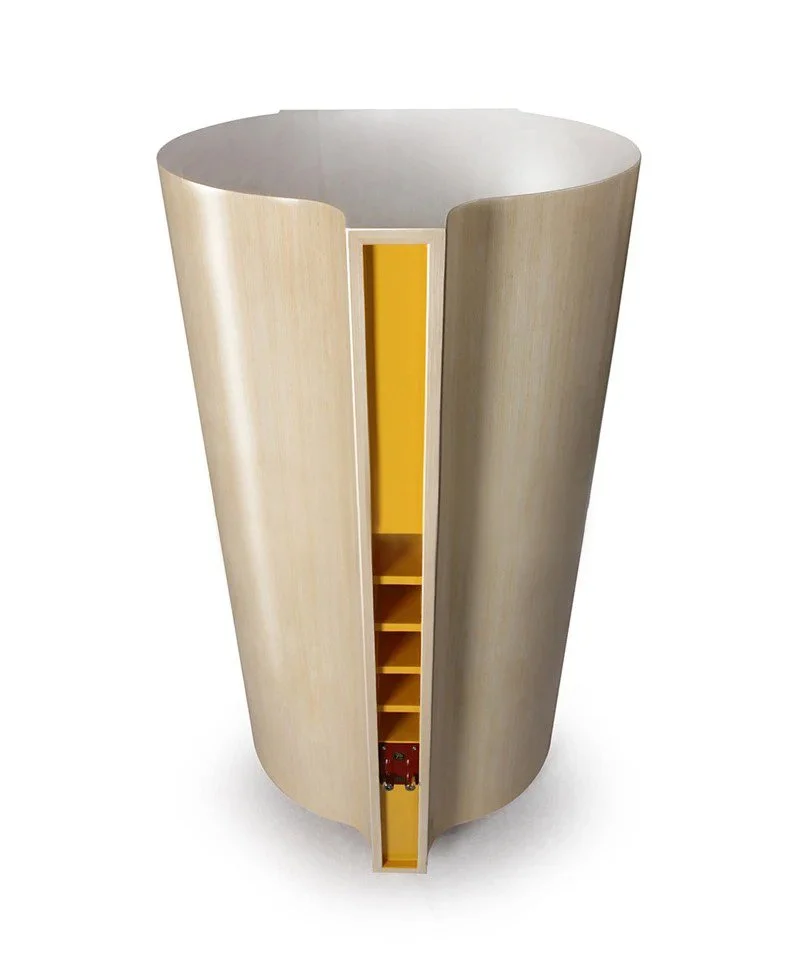

The curved cabinet is a product of advanced woodworking and multi-layer lamination techniques. Its form is not just elegant—it serves a vital acoustic function. The smooth curves reduce internal reflections and standing waves, eliminating the need for sound-absorbing materials. Rear wave energy is vented through multiple ports, producing clean and natural bass without muddiness. The cabinet is constructed from 36 mm thick panels and reinforced internally for rigidity and sonic stability.Driver Excellence

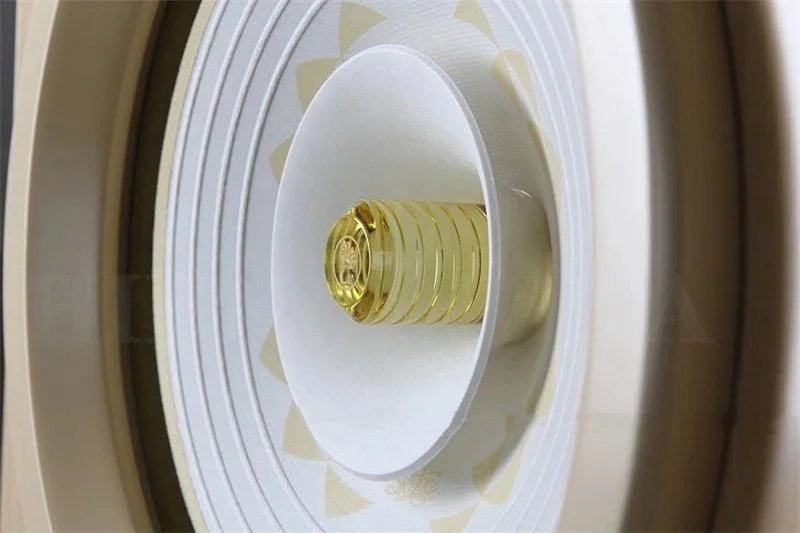

At the heart of the Crystal-10 is Lii Audio’s flagship full-range driver, the CRYSTAL-10, featuring a low resonant frequency (Fs) of 33 Hz and matched with a generous 190-liter cabinet. This combination provides deep, articulate bass while maintaining the driver’s hallmark midrange warmth and upper-frequency clarity. The result is a sound that is detailed, fluid, and emotionally engaging.High Sensitivity, Low Power Requirement
With a sensitivity of 99–100 dB, the Crystal-10 can be effortlessly driven by low-wattage tube amplifiers. Its single-driver, crossoverless design ensures a direct, phase-coherent signal path for uncompromised tonal purity and coherence. Despite the absence of a traditional crossover, the speaker offers remarkable detail retrieval and precise imaging, with no loss in tonal richness or high-frequency extensio
Summary
The Crystal-10 loudspeaker is a harmonious blend of acoustical engineering and artisan craftsmanship. Ideal for purist audiophiles and low-power amplifier enthusiasts, it offers an immersive full-range experience with unmatched clarity, elegant aesthetics, and truly musical performance.
