FC 10
1780 US $ per pair (with Power supply included)
Contact us to get a quote with shipping at contact@liiaudiohifi.com
The Essence of Field Coil
The Lii Audio FC-10 brings the legendary field coil sound into a more compact 10-inch format, delivering the same purity, immediacy, and dynamic expression that define our larger FC series. With a 34.6 Hz resonant frequency, 96.7 dB sensitivity, and an extended response up to 18 kHz, the FC-10 combines vintage-inspired field coil technology with modern precision for breathtaking tonal accuracy.
Engineered with a 38 mm voice coil and 120 mm field coil motor, the FC-10 achieves remarkable control, low distortion, and effortless transient response. It is ideally suited for audiophile-grade open baffle, horn, or transmission line enclosures, where it offers a natural sense of air, texture, and realism—without the need for a crossover.
Key Features
10" Field Coil Full-Range Driver — Compact yet powerful performance
Wideband Response (34.6 Hz – 18 kHz) — Smooth extension from lows to highs
High Sensitivity (96.7 dB) — Perfect for low-wattage, high-quality tube amps
Field Coil Motor — Lower distortion, enhanced dynamics, lifelike clarity
Crossover-Free Design — Preserves phase integrity for pure sound reproduction
Audiophile Applications — Optimized for open baffle, back-loaded horn, or TL systems
Technical Specifications
Resonant Frequency (Fs): 34.6 Hz
Frequency Range: 34.6 Hz – 18,000 Hz
Sensitivity (SPL): 96.7 dB (1W/1m)
Nominal Impedance: 8 Ohms
Max Power (Short Term): 80 W
Qts: 0.73
Qms: 3.081
Qes: 1.141
Vas: 286.8 L
Sd (Cone Area): 362 cm²
Cms (Compliance): 1.541 M/N
Mms (Moving Mass): 54.52 g
Mmd (Diaphragm Mass): 10.081 g
Bl: 12.684 T·m
Xmax: 5 mm
Voice Coil Diameter: 38 mm
Magnet Diameter: 120 mm (Field Coil)
Nominal Diameter: 273 mm (10")
Installation Notes

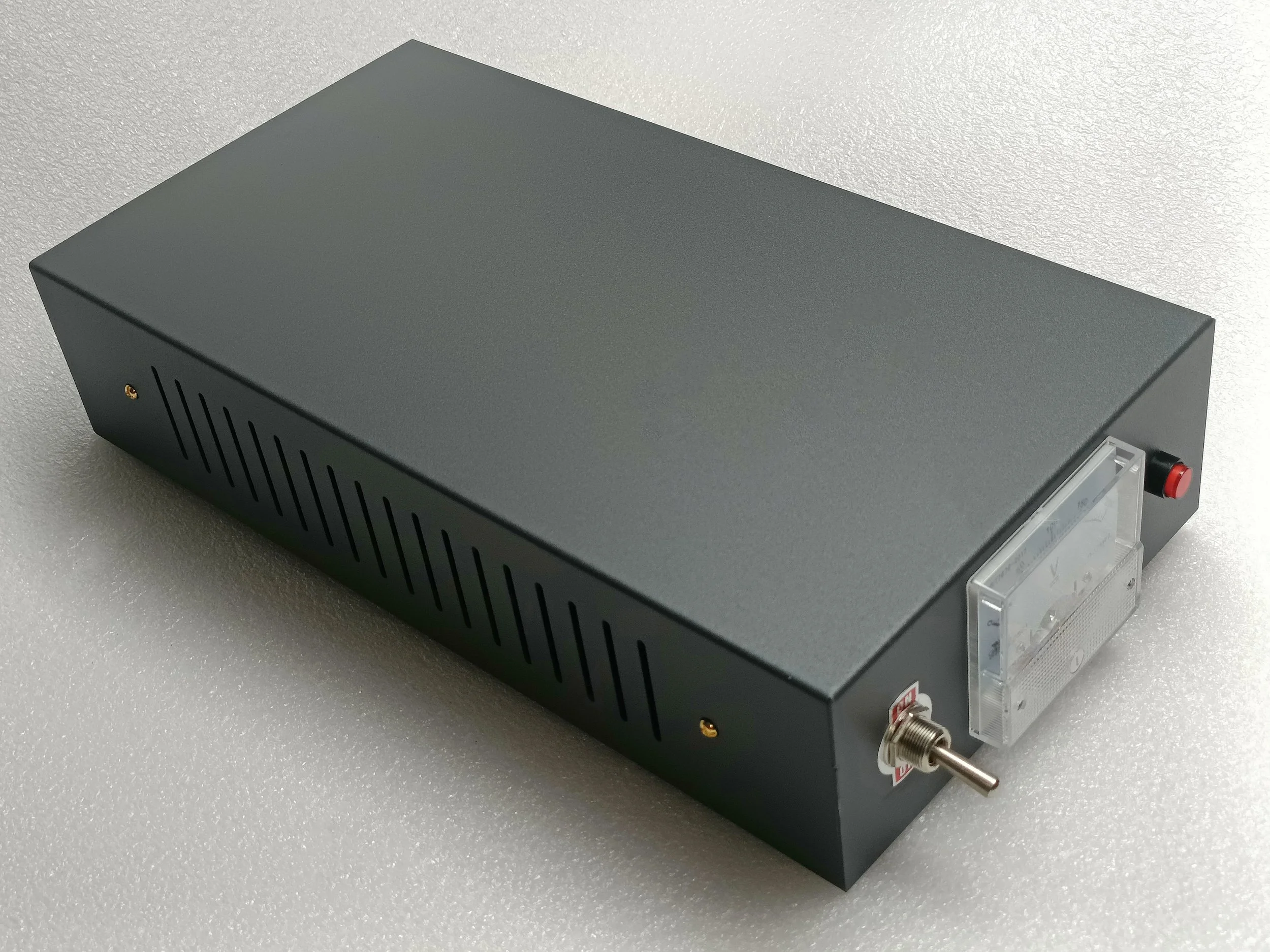

Requires an external DC power supply for field coil excitation
Performs best in high-efficiency enclosures (open baffle, horn, TL)
Sold as a matched pair for true stereo performance
