H 1802

1512 US $ per pair

Expanding the Horizon of Coaxial Sound

Contact us to get a quote with shipping at contact@liiaudiohifi.com

The New Reference in Coaxial Design

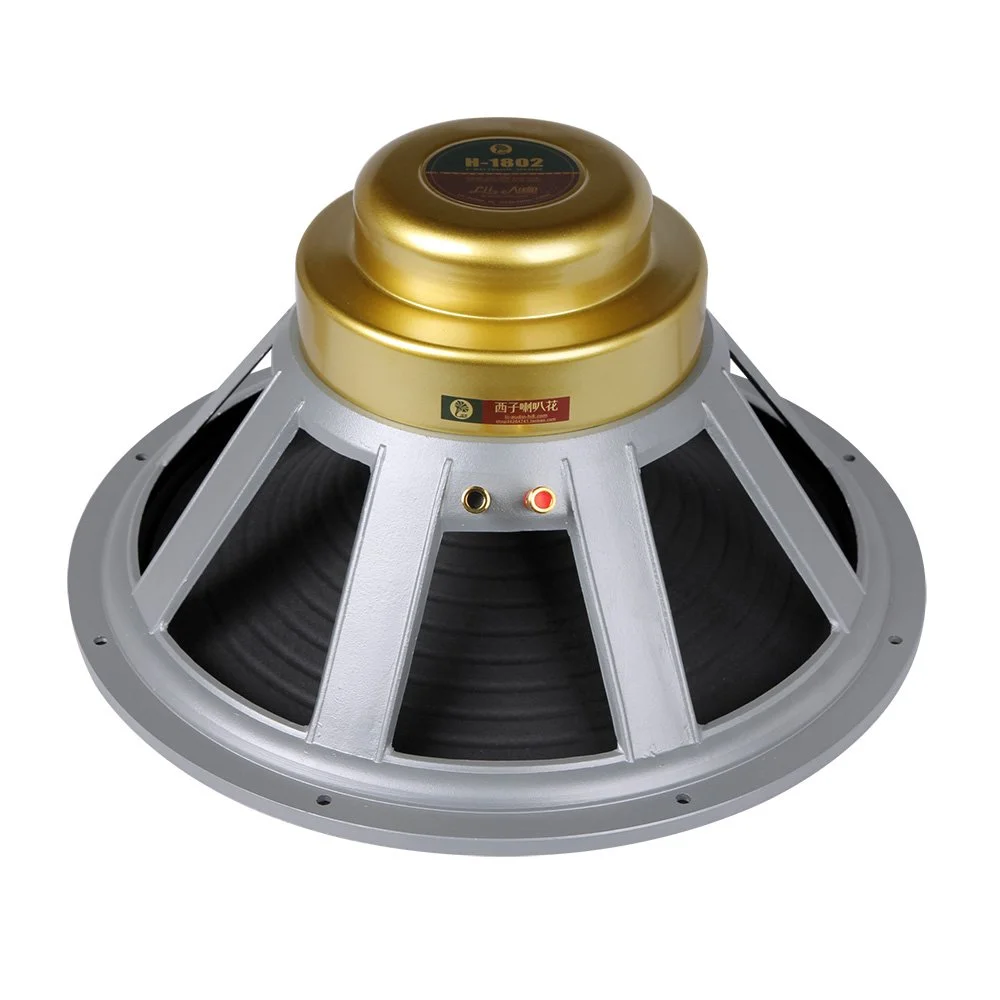

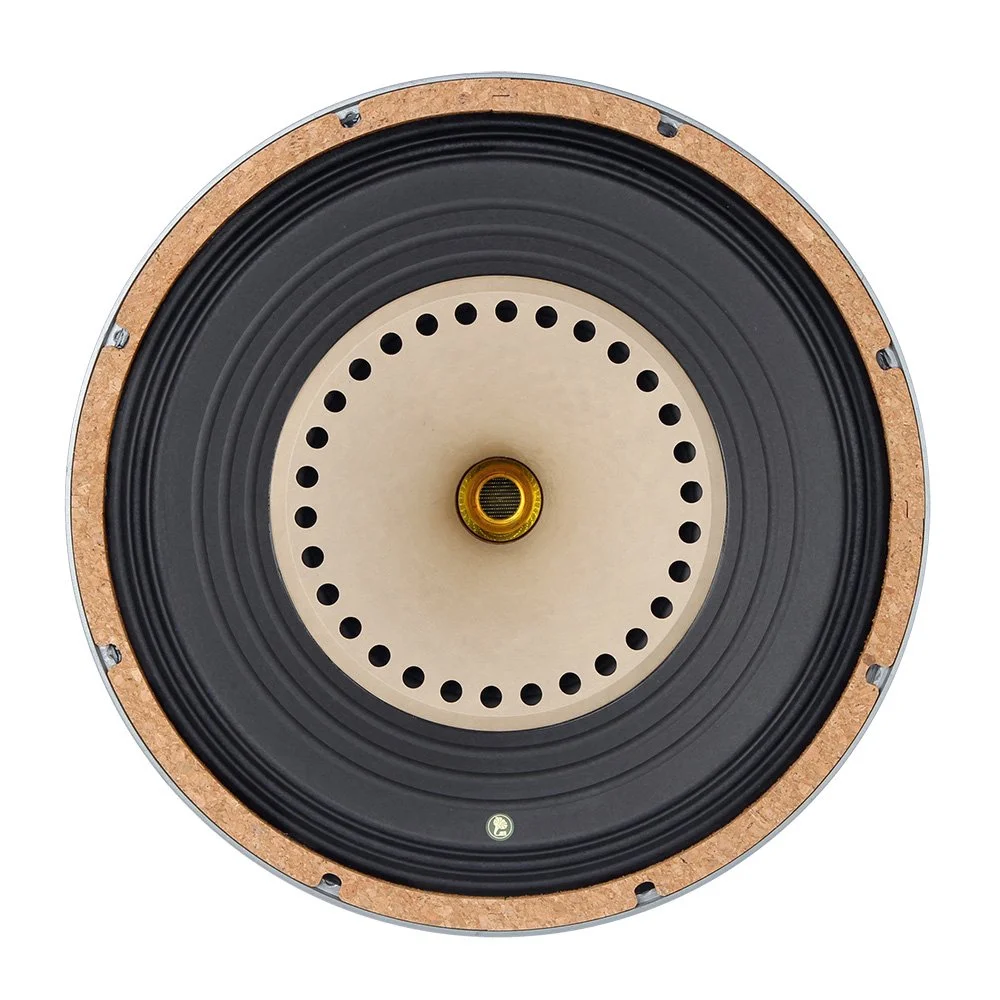

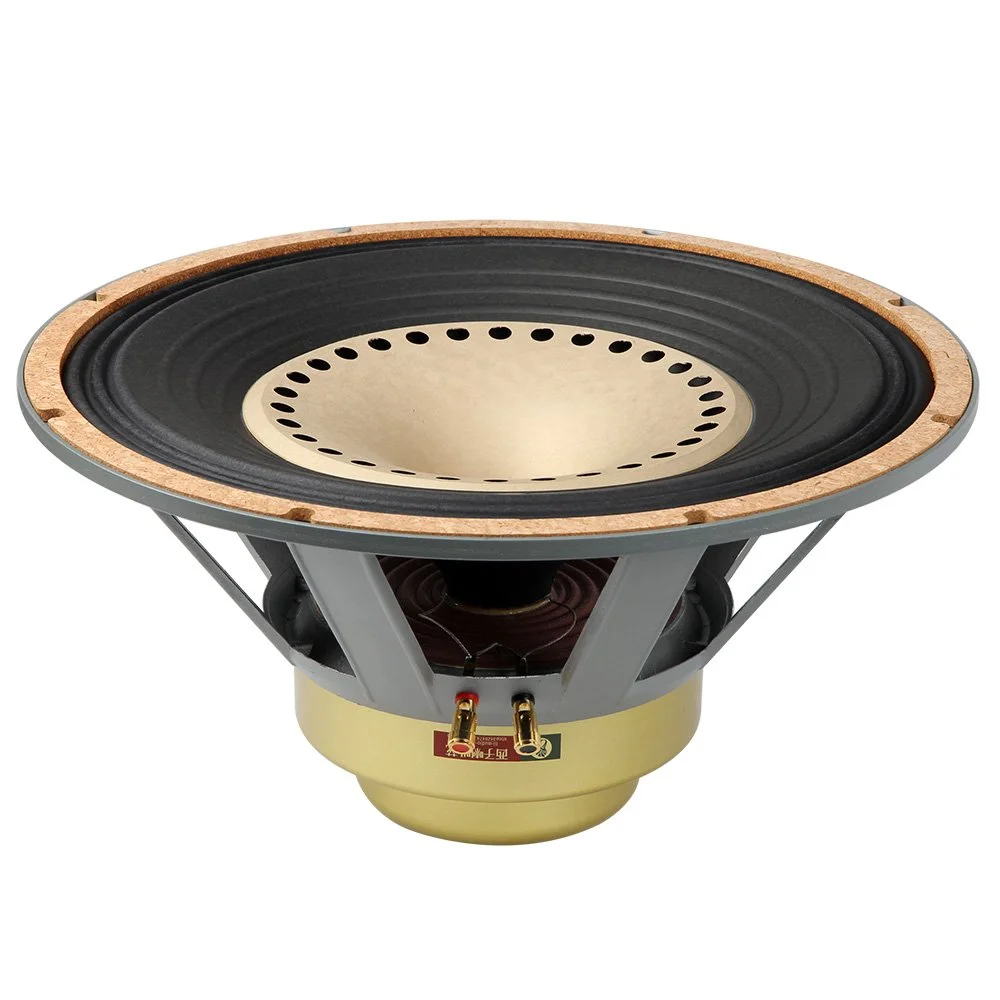

The Lii Audio H1802 is an 18-inch coaxial loudspeaker meticulously crafted for discerning audiophiles who seek both scale and coherence from a single, unified source. By integrating a wideband driver and a high-frequency unit along the same axis, the H1802 delivers exceptional time alignment and natural imaging—offering the intimacy of a full-range driver with the extension and air of a dedicated tweeter.

With 97 dB sensitivity and a frequency range from 28 Hz to 20 kHz, the H1802 captures the full emotional spectrum of music, from deep, tactile bass to refined, lifelike highs. Its 50 mm voice coil and 200 mm ceramic magnet assembly ensure precise control, dynamic headroom, and musical transparency across all playback levels.

Built to perform in open baffle, horn, or custom enclosures, the H1802 embodies Lii Audio’s philosophy—a seamless, phase-coherent sound that transcends the limitations of traditional multi-way systems.

Key Features

18" Coaxial Design – True point-source coherence for lifelike imaging
Wideband Response (28 Hz – 20 kHz) – Deep bass meets extended highs
High Sensitivity (97 dB) – Perfect match for high-quality, low-power amplifiers
Ceramic Y35 Magnet (200 mm) – Powerful, stable magnetic field for precision control
50 mm Voice Coil – Robust construction for dynamics and clarity
Phase-Coherent Reproduction – Natural tone without crossover complexity
Audiophile-Grade Construction – Hand-built with premium materials

Technical Specifications

Resonant Frequency (Fs)
27.8 Hz

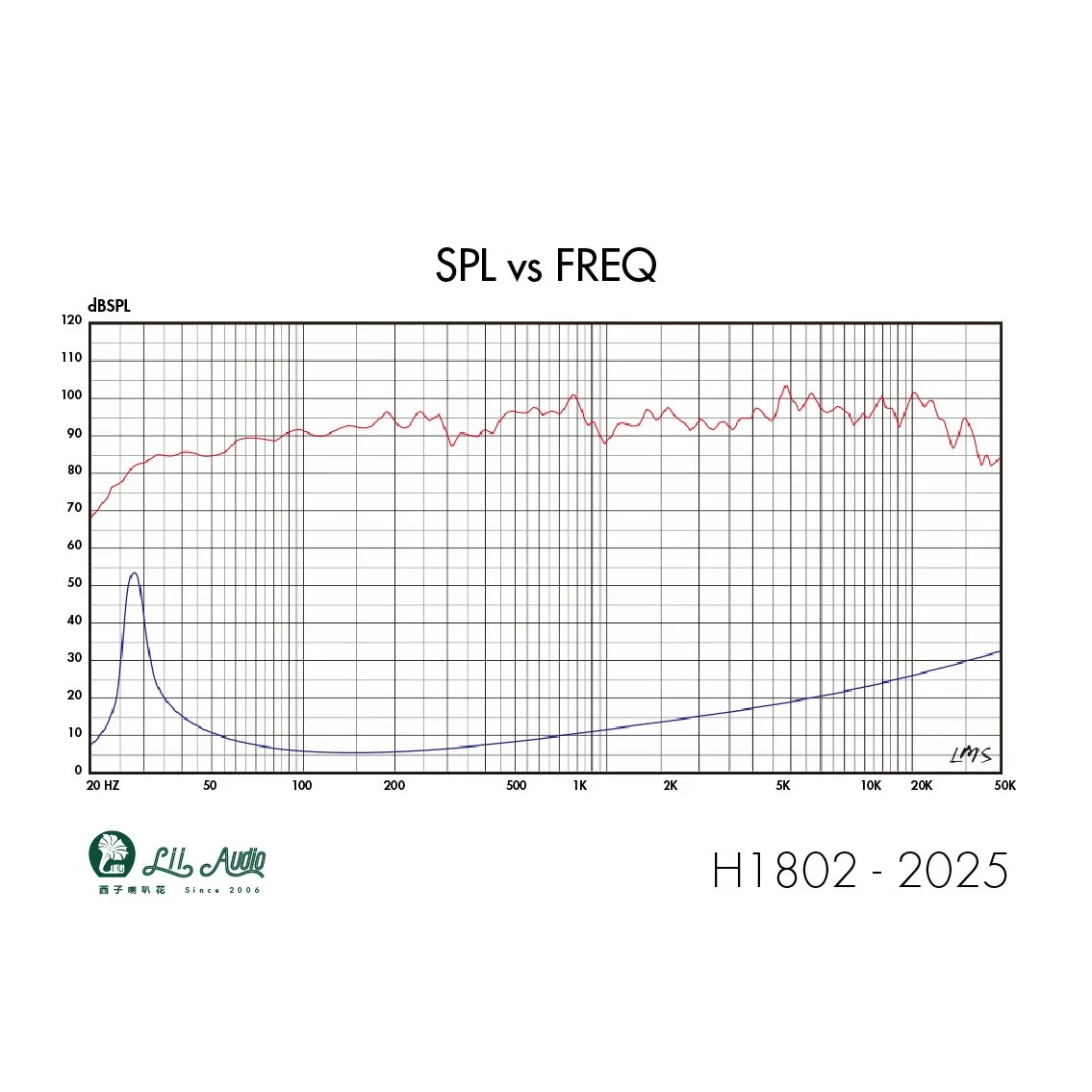

Frequency Range
28 Hz – 20,000 Hz

Sensitivity (SPL)
97.6 dB (1W/1m)

Nominal Impedance
8 Ω

DC Resistance (Re)
4.9 Ω

Qms
8.309

Qes1.407

Qts
1.203

Vas
996 L

Sd (Cone Area)
1224 cm²

Cms (Compliance)
468 µM/N

Mms (Moving Mass)
67.748 g

Mmd (Diaphragm Mass)
45.125 g

Bl (Magnetic Force Factor)
6.519 T·m

Xmax
5 mm

Max Power (Short-Term)
100 W

Voice Coil Diameter
50 mm

Magnet Diameter / Material
200 mm / Ceramic Y35

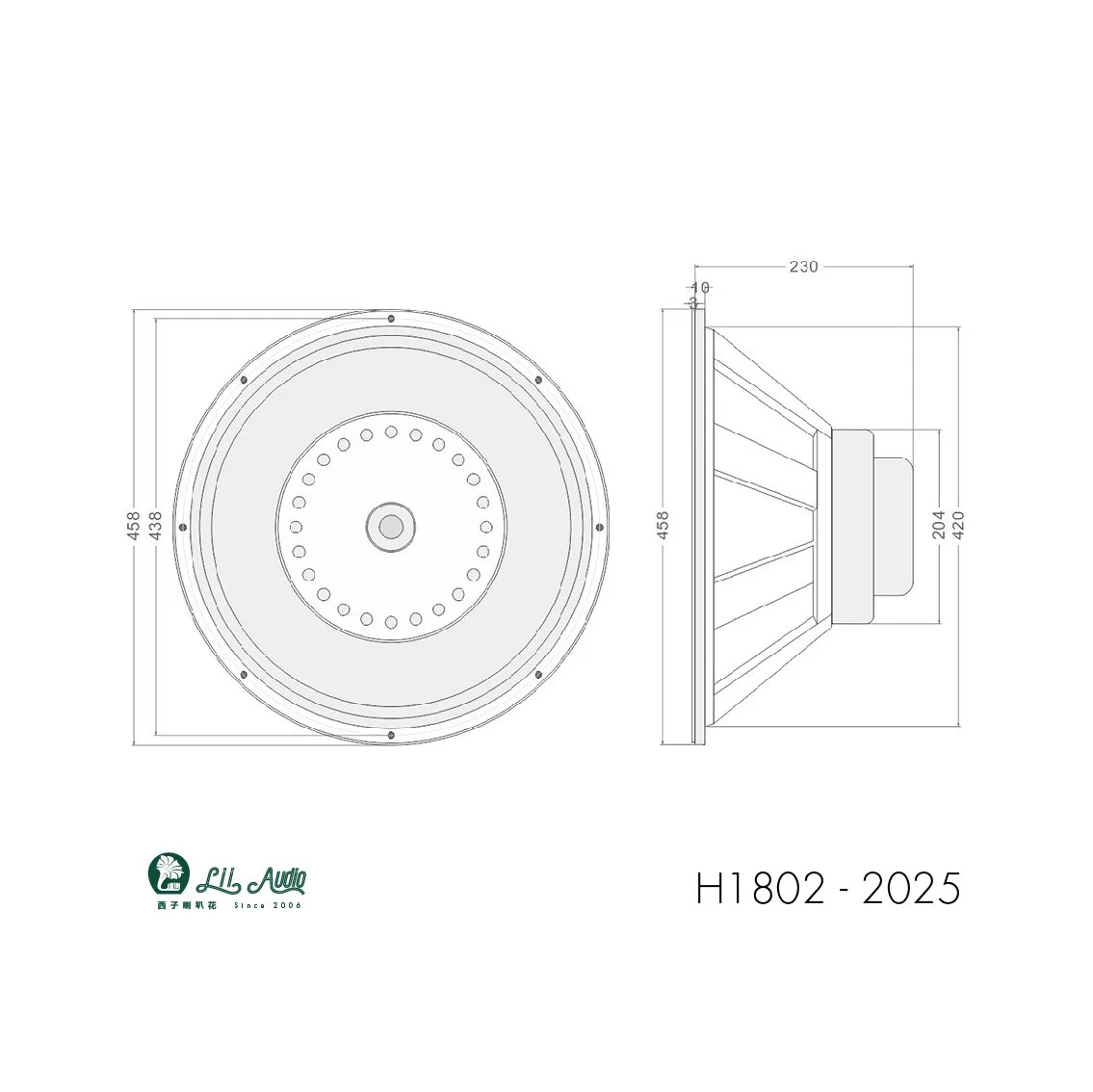

Nominal Diameter
458 mm (18")

Net Weight
12 kg

Installation Notes

Optimized for open baffle, high-efficiency enclosures (large)
Ideal for audiophile and studio-grade systems
Designed for pure, time-aligned sound with natural tonal balance
