ST-5

218 US $ per pair

Contact us to get a quote with shipping at contact@liiaudio.com

Engineered for Clarity and Precision

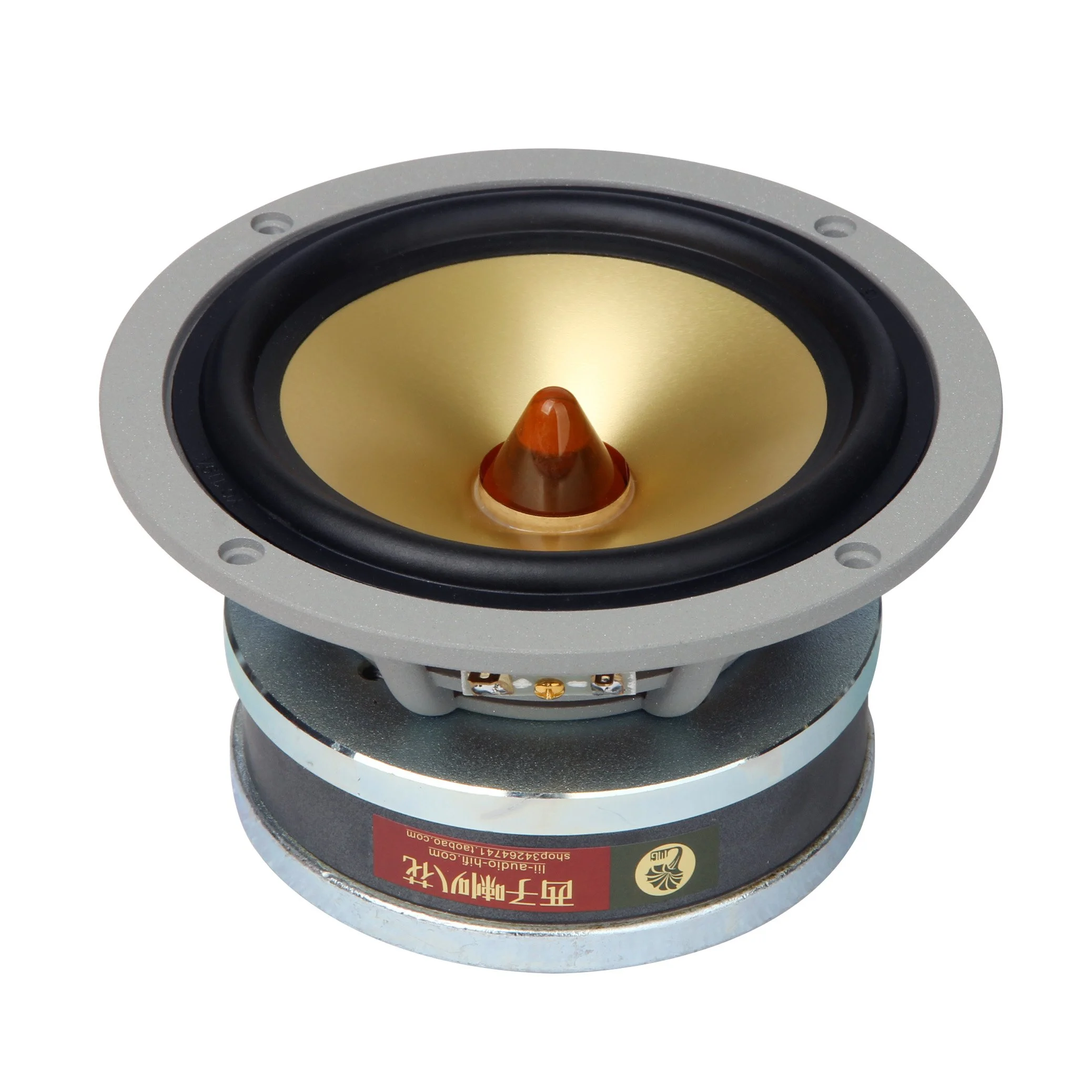

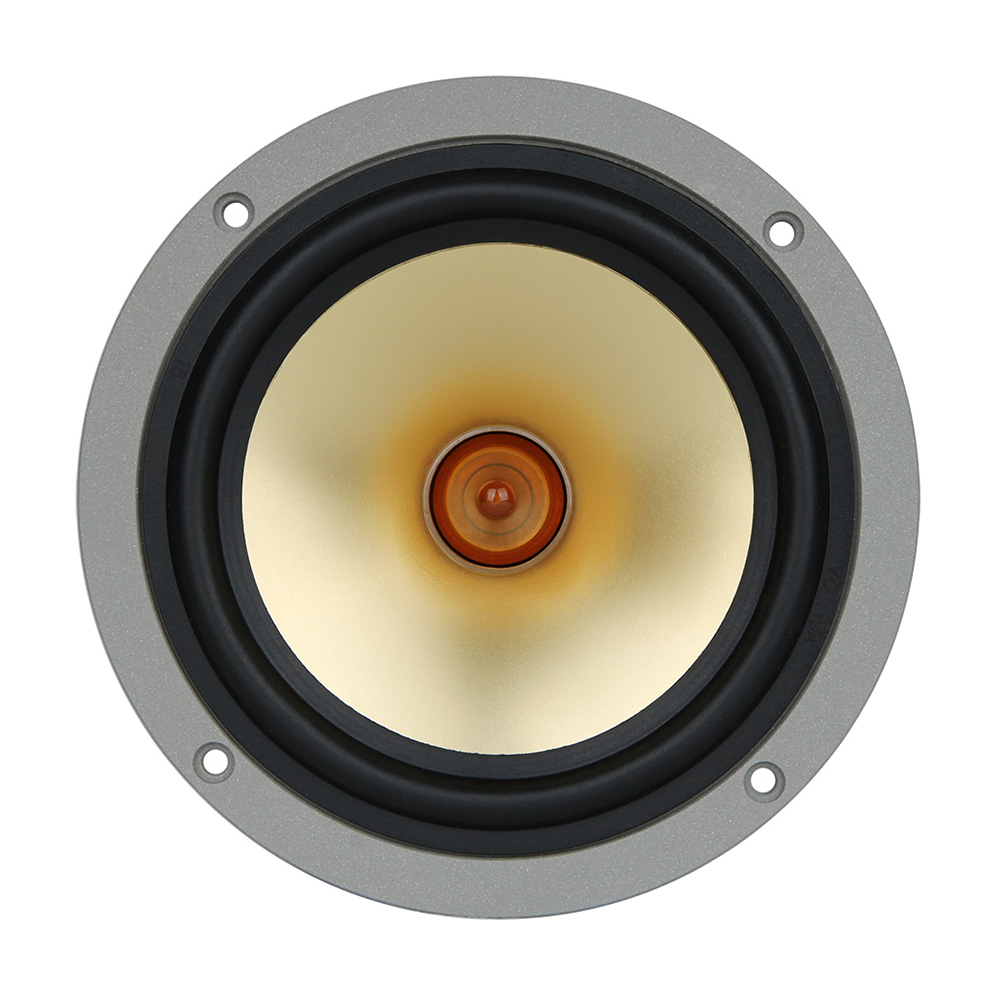

The Lii Audio ST-5 is a high-performance 5-inch full-range speaker driver built for audiophiles who appreciate crisp detail, accurate imaging, and a modern, open sound signature. Featuring an aluminum cone, the ST-5 offers increased stiffness and reduced breakup, delivering clean transients and precise mid-to-high frequency response in a compact format.

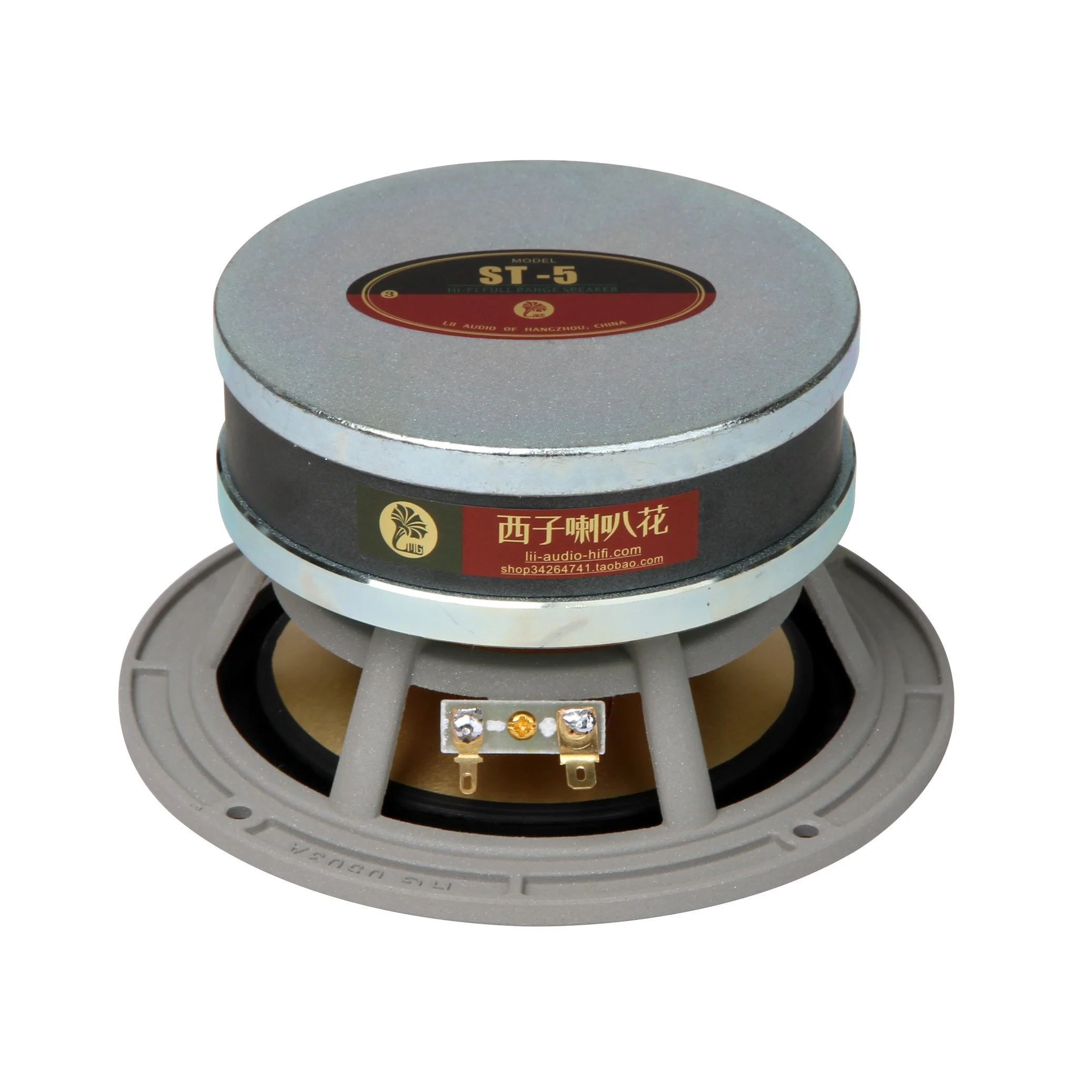

With 91 dB sensitivity and a wide frequency range extending from 55 Hz to 20 kHz, the ST-5 is ideal for nearfield listening, desktop HiFi, or compact full-range enclosures. The driver’s ceramic Y35 magnet, precision-wound 25 mm voice coil, and robust motor structure ensure articulate dynamics and solid bass performance—without the need for a crossover.

Key Features

5" full-range driver with lightweight aluminum cone
Strong, balanced sound with 91.3 dB sensitivity
Full-range output: 55.8 Hz – 20,000 Hz
High-quality Ceramic Y35 magnet for magnetic control and stability
Excellent for compact enclosures and low-power amplifier setups
No crossover required — direct, uncolored signal path

Technical Specifications (Thiele-Small Parameters)

Frequency Response
55.8 Hz – 20,000 Hz

Resonant Frequency (Fs)
55.8 Hz

Sensitivity
91.3 dB (1W/1m)

Nominal Impedance
8 Ohms

Max Power
40 W

Qts
0.662

Qms
2.908

Qes
0.856

Vas
14.3 L

Xmax
4 mm

Re (DC Resistance)
7.3 Ohms

Sd
108.03 cm²

Cms
573.576 µM/N

Mms
9.107 g

Mmd
6.144 g

Bl
5.828 T·m

Voice Coil Diameter
25 mm

Magnet Material Diameter
110 mm with Ceramic Y35

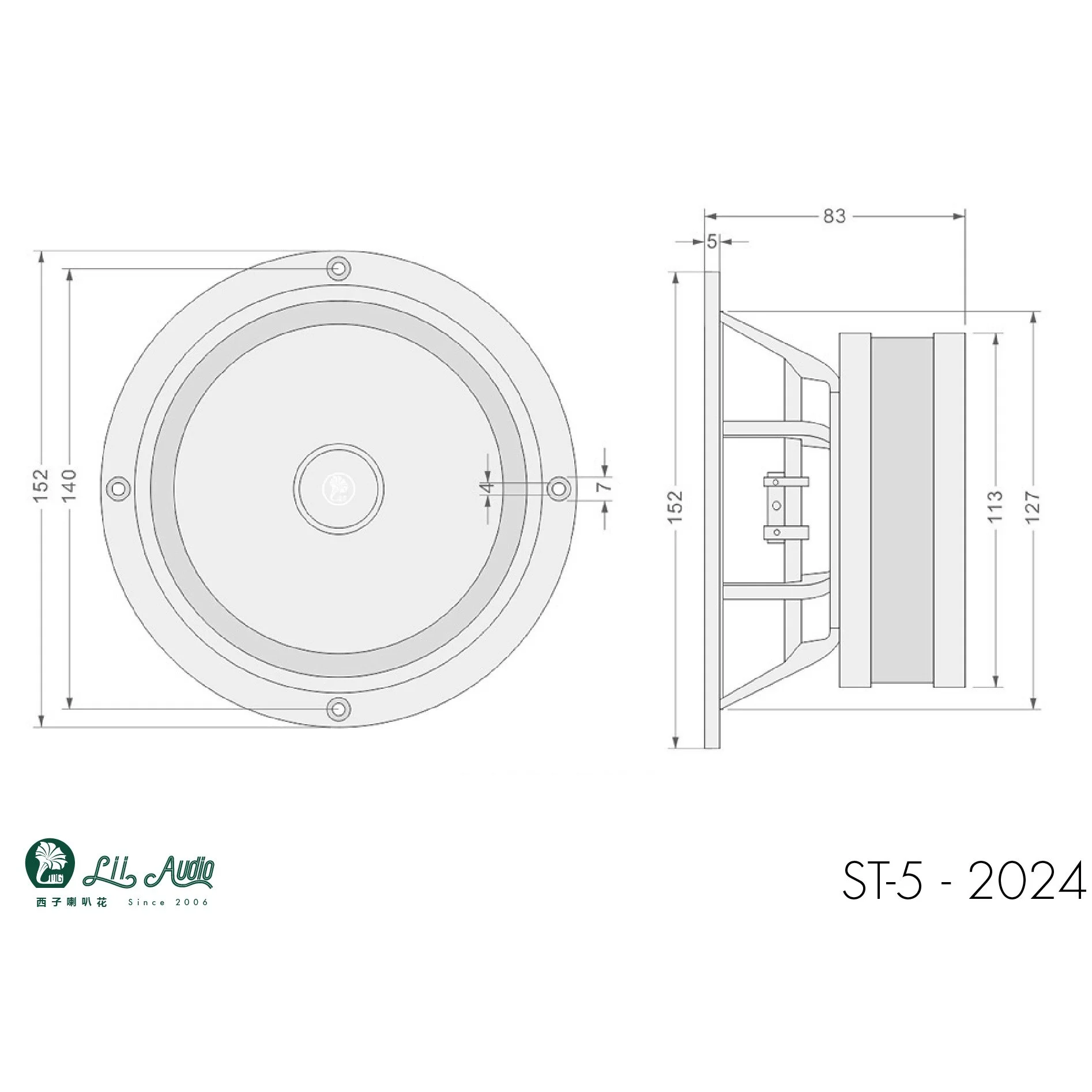

Nominal Diameter
152 mm

Packaging

Dimensions: [Insert packaging size]
Includes: 2 speakers (matched stereo pair)
Shipping Weight: [Insert total shipping weight]

Usage Notes

Best suited for small full-range enclosures or wide-baffle designs
No crossover required — preserving clarity and signal integrity
Performs well with tube amps, Class A, and low-watt solid-state systems
Sold as a matched stereo pair
